Upper Guadalupe Flood Viewer

Choose a storm, then choose what you want to see.

Dedicated to the memory of Clay Parisher. Built by a local flood survivor to prepare our community. Learn how this works

  1. 🔍 Enter your address or zoom to your property.
  2. 🌊 Choose water depth, velocity, or rainfall to see the historic July 4 flood.
  3. 🔄 Try a what-if scenario (shifted or rotated storms).
  4. 🗺️ This site sells custom maps of your property for any storm event.
  5. ❓ Not sure? Click "Get Help / Contact Me" below to ask a question!
Get Help / Contact Me
1

Find your property

Search your address to see your local flood risk.

2

Choose a storm

Start with what happened, then move or grow the rainfall footprint.

Storm scenario

3

Choose what to see

The map updates when you select a layer.

Legend

You moved the rainfall. What happened to the flood? Unlock the modeled result for your property.

What-if flood depth, water speed, peak flows and hydrographs are purchase-only.

See My Property Risk ↗ View Sample Flood Snapshot ↗

What-if scenarios

What happened during the July 4, 2025 flood, reconstructed from the accepted model results.

Layer Opacity

75%
Loading raster…
About the Scenarios & Methods

Storm Transposition Analysis: Storm transposition shifts an observed historical storm footprint (July 2025 event) across a basin to evaluate hydrologic vulnerabilities and downstream flow peaks under localized alignments.

Scenario Explanations:

  • Scenario A (Historical): July 4, 2025 historical reconstruction calibrated against observed gauges.
  • Scenario C (Shifted): The July 4 rainfall footprint moved toward the divide between the North and South Forks.
  • Scenario D (Expanded): The July 4 rainfall footprint expanded by 20% for a broader-storm stress test.
  • Scenario E (North Fork): The July 4 rainfall footprint moved northwest over the North Fork headwaters.

Reconstructed Map Layers: Depth and velocity layers were reconstructed from accepted HEC-RAS result HDF5 dataset grids. Interpolated via cell-center coordinates using natural neighbors, and masked to the wet depth footprint.

Watertight Flow Extraction: Simulated flows were extracted through cross-sectional shape line faces using the cell-by-cell signed face normal velocity method. Total runoff volume error remains below 0.01%.

Units & Data Sources:

  • Rainfall: inches (in)
  • Depth: feet (ft)
  • Velocity: feet per second (ft/s)
  • Discharge: cubic feet per second (cfs)
  • NOAA Post-Flood imagery: July 2025

Limitations Notice: Depth and velocity viewer rasters were reconstructed from accepted HEC-RAS result HDF data using a consistent method for all scenarios. The reconstructed depth footprint may be smaller than a native HEC-RAS Mapper Horizontal WSEL map because the workflow does not reproduce HEC-RAS Mapper’s horizontal boundary extrapolation.

Peak Flow Summary

North Fork Hunt
56,944 cfs
34,489 ac-ft
South Fork Hunt
275,094 cfs
89,017 ac-ft
Combined Hunt
312,424 cfs
122,428 ac-ft
What-if results locked

The rainfall is public. The modeled damage is the product.

Order a Flood Snapshot to see how the shifted storm affects your property.

Get My Flood Snapshot ↗ View Sample Flood Snapshot ↗

Want to know what this means for your property?

Get a Flood Snapshot View Sample Snapshot
↔
🔒

How does this storm affect your property?

You are viewing the rainfall footprint. The modeled water depth, flow speed, and structure inundation maps are locked for this what-if storm.

See My Property Risk →
Scenario A · July 4, 2025

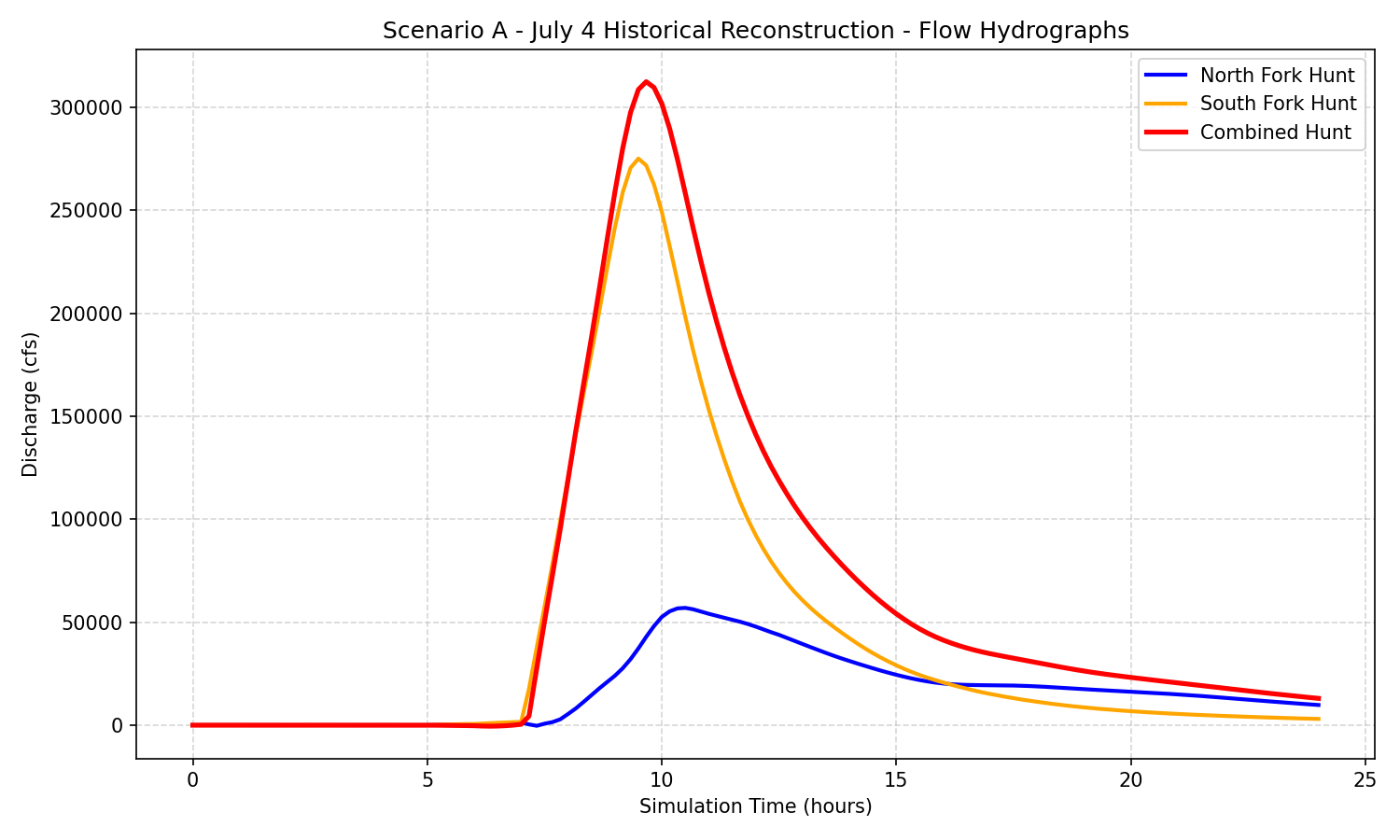

Flow hydrographs

Scenario A flow hydrographs for the North Fork, South Fork, and Combined Hunt locations

North Fork Hunt · South Fork Hunt · Combined Hunt

Explore the July 4 Flood

View the reconstructed storm-total rainfall, maximum flood depth, maximum water velocity, peak flows, runoff volumes and hydrographs from the July 4, 2025 flood.

Move the Storm

Explore what could happen if the July 4 rainfall shifted a few miles, moved over another fork, or grew by 20 percent. Public what-if scenarios show the changed rainfall. Property-specific modeled flood results are available through a Flood Snapshot.

Understand Your Property’s Risk

The public viewer shows the larger watershed. A Clay Flood Concepts Flood Snapshot focuses on how an extreme storm could affect your property or project, with results tailored specifically to your site.
